IDE Settings
Table of Contents
Where to change it

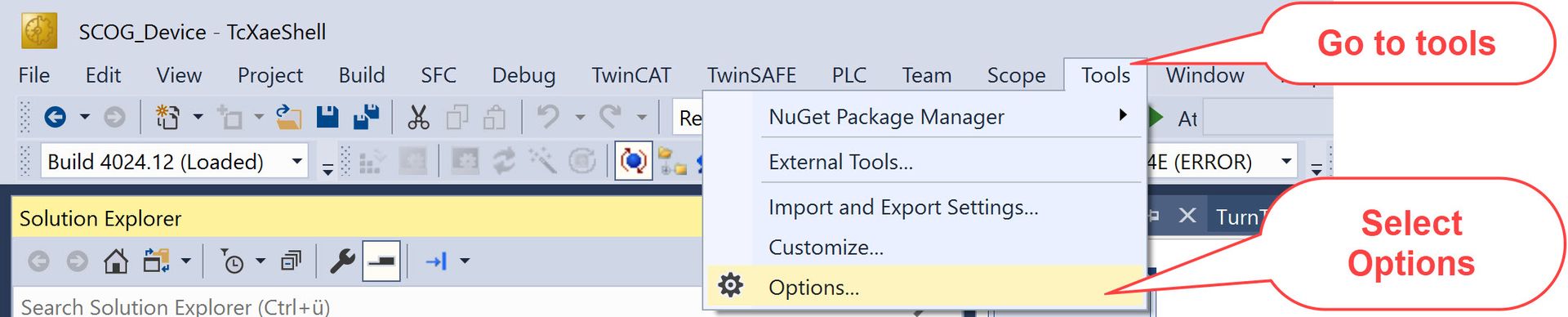

To change the IDE settings, go to tools⇾options
Text Editor
Tab width must be 4
Indent width must be 4
Keep tabs must be checked
AutoIndent must be ‘Smart with code completion’ or Smart

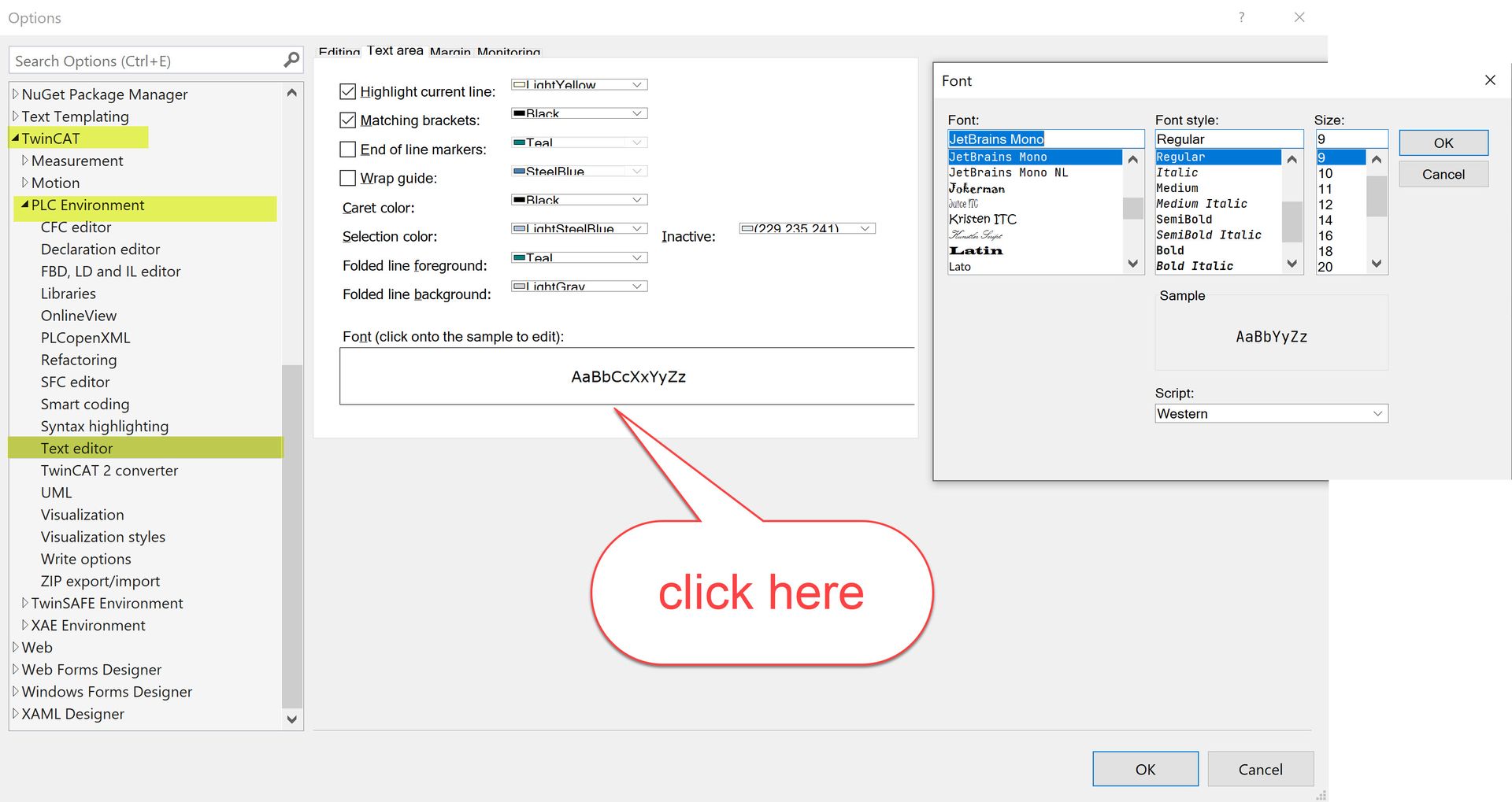

Font must be ‘JetBrains Mono’ version 2.242 you’ll find it here.
Font style must be Regular
Font Size must be 9
Script must be Western

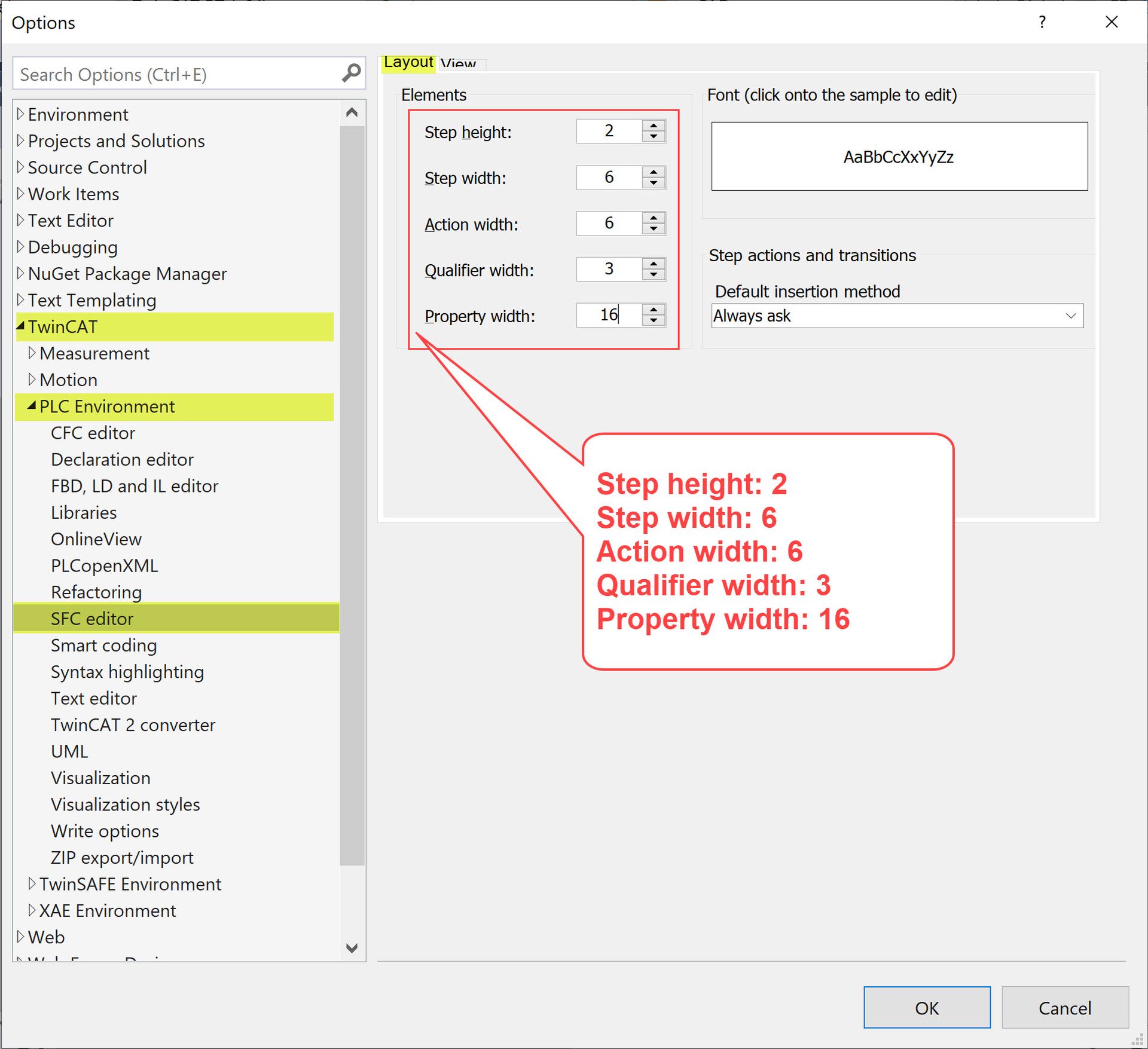

SFC Editor
Step height must be 2
Step width must be 6
Action width must be 6
Qualifier width must be 3
Property width must be 16

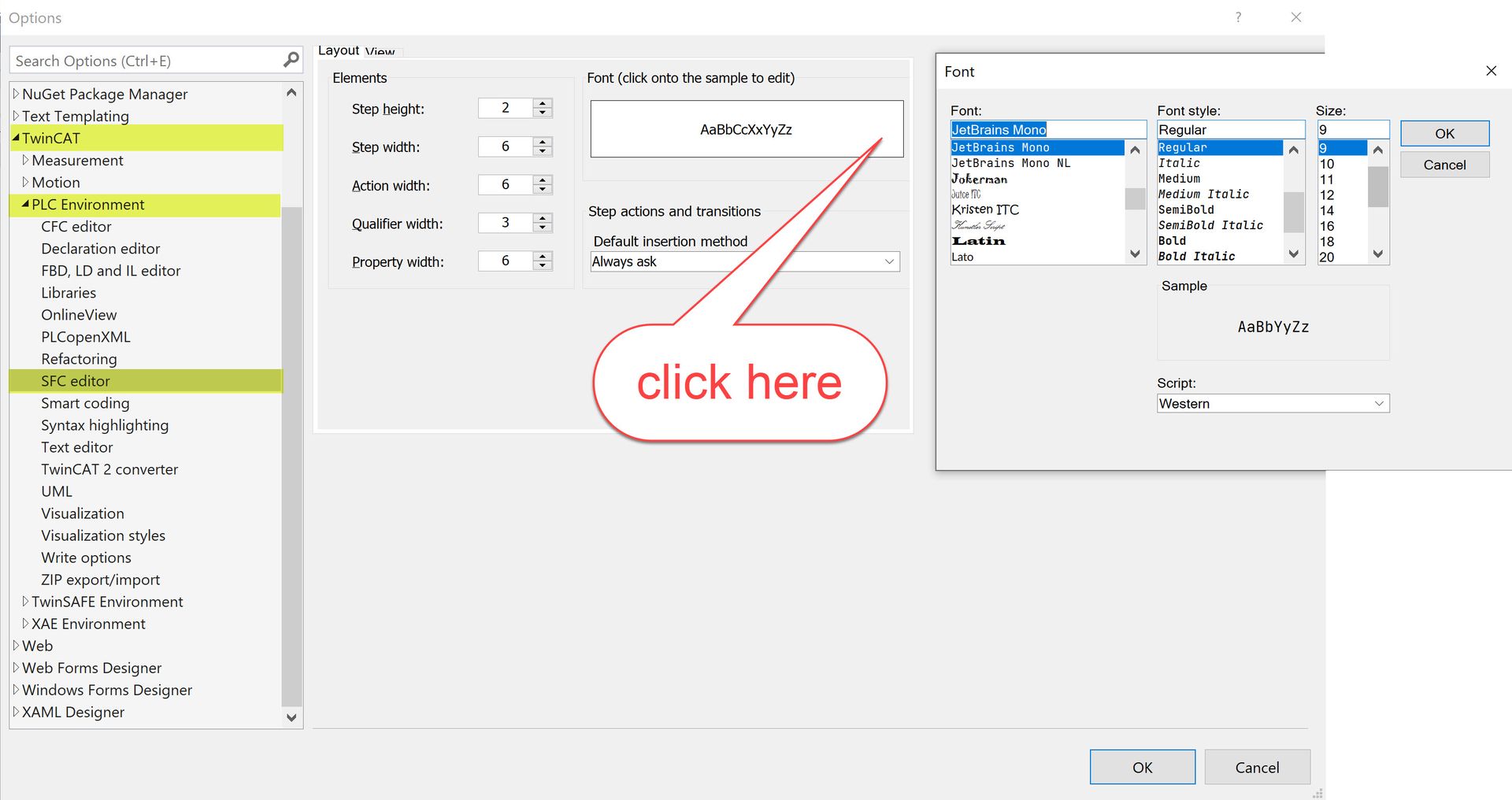

Font must be ‘JetBrains Mono’ version 2.242 you’ll find it here.
Font style must be Regular
Font Size must be 9
Script must be Western

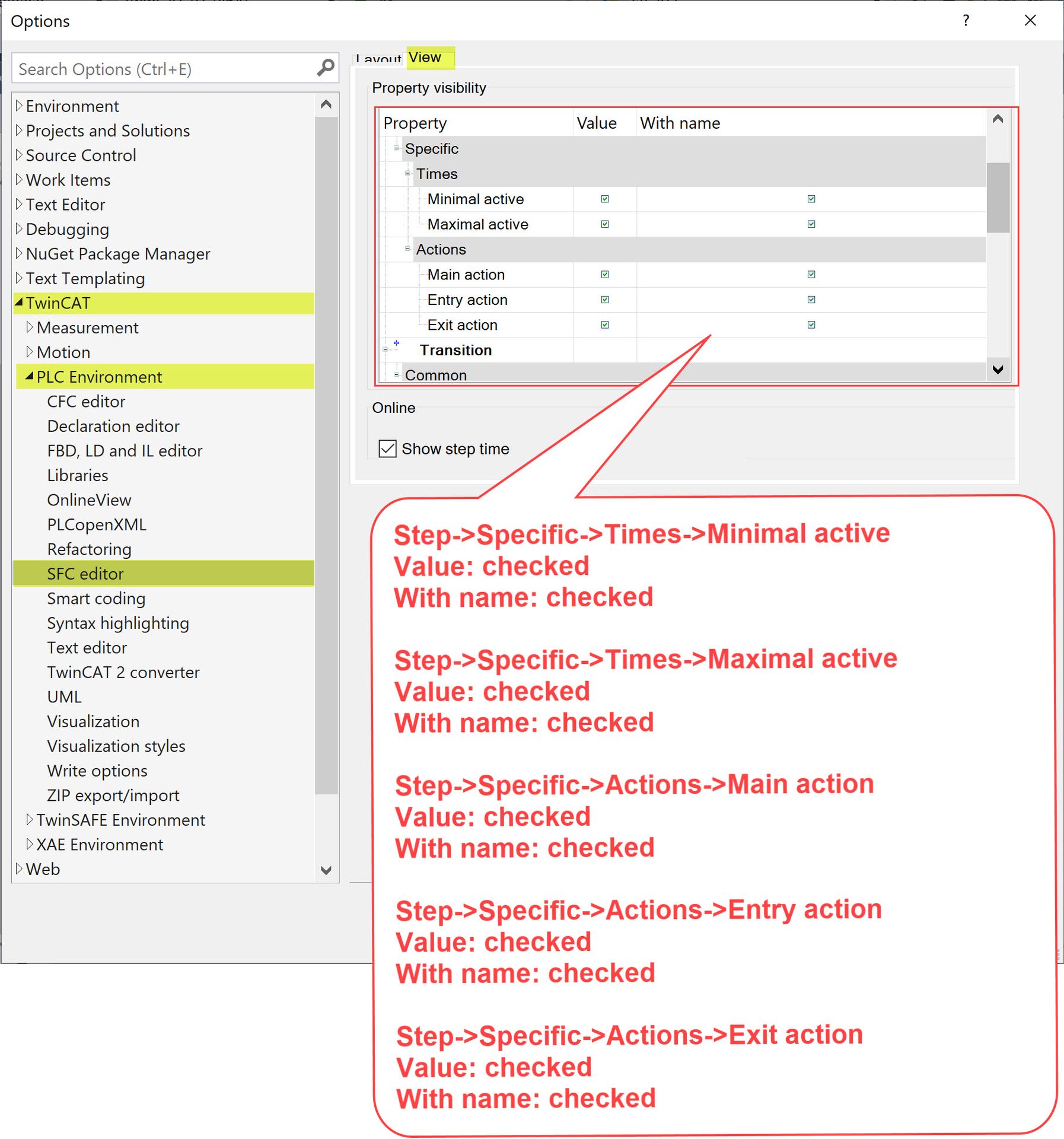

View Properties
Step⇾Specific⇾Times⇾Minimal active
Value must be checked
With name must be checked
Step⇾Specific⇾Times⇾Maximal active
Value must be checked
With name must be checked
Step⇾Specific⇾Actions⇾Main action
Value must be checked
With name must be checked
Step⇾Specific⇾Actions⇾Entry action
Value must be checked
With name must be checked
Step⇾Specific⇾Actions⇾Exit action
Value must be checked
With name must be checked
